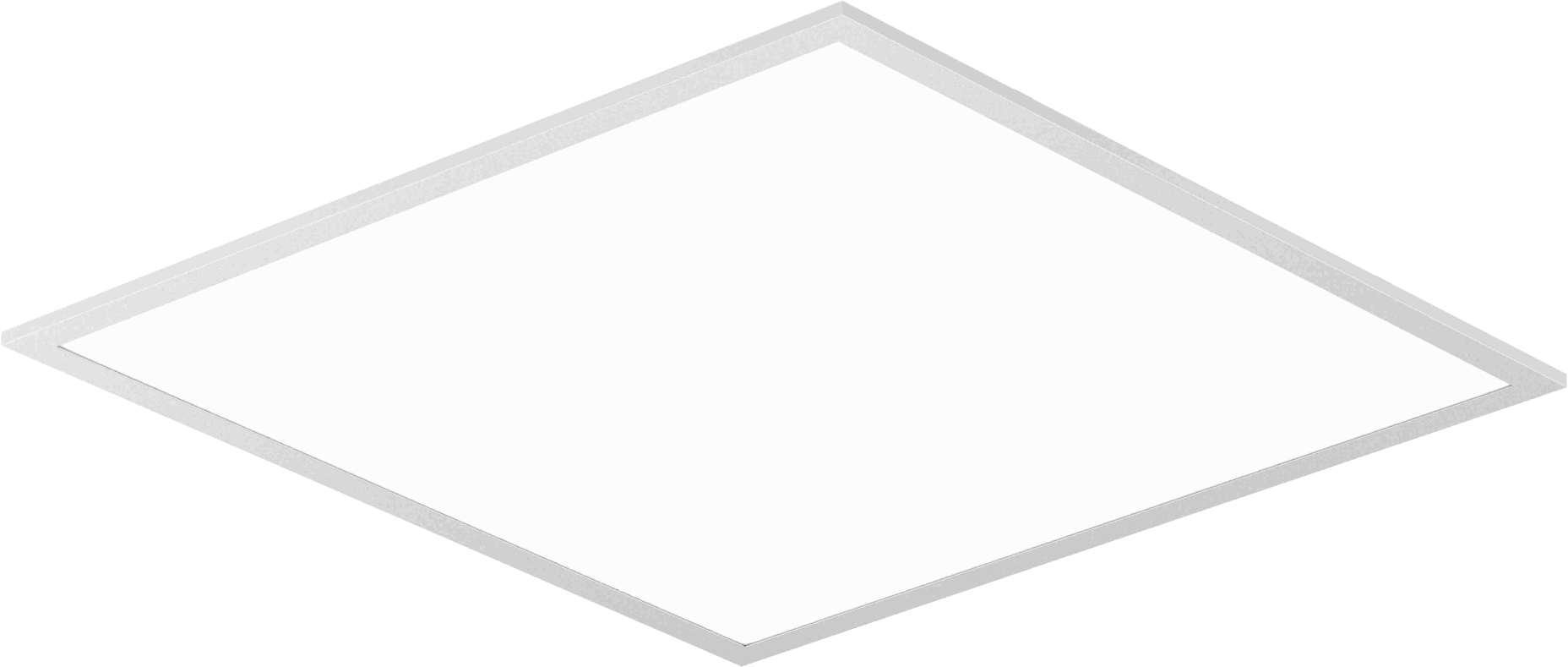

Value Backlit Panel 2×2

Product Benefits

  • Uniform light effect with the optic lens
  • High-Cost performance
  • Integrated iron plate design provides excellent thermal management


Download Product Specifications

Wattages

Value Backlit Panel 2×2 36W

Value Backlit Panel 2×2 40W

Product Features

Housing Aluminum(Frame)
Control 0-10v Dimmable(Optional),PIR Senso(Optional),DALI(Optional)
Installation Surface Mount, Pendant Mount,and Recessed
Cold Temperatures 3000K,4000K,5700K,6500K
IK Rating 02
IP Rating 40
Operating Temperature -10 °C ~ 40 °C
Lifespan 50,000hrs
Warranty Up to 3 Years



Application Areas

  • Educational Institutions
  • Offices
  • Conference Room
  • Hospitals
  • Super Markets

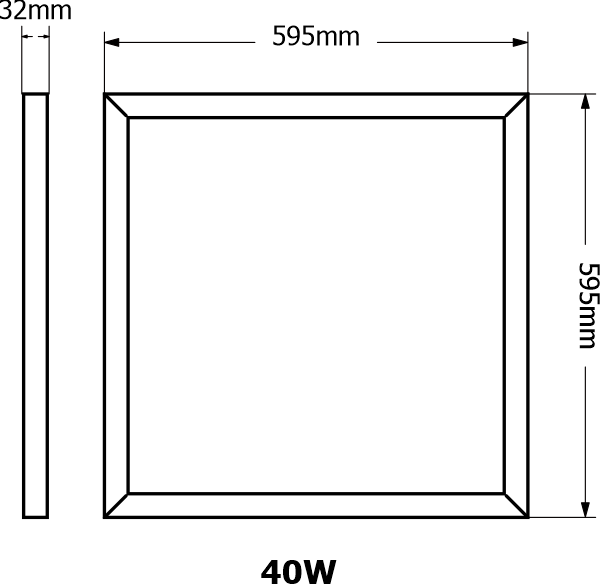

Dimension Sketch
